Pioneering research discovers PFOS in NSW platypuses: Central coast's Ourimbah Creek has 2nd highest result
August 20, 2024
Pioneering research from Western Sydney University has discovered PFOS (perfluorooctane sulfonate) chemical contamination in the livers of deceased platypuses across eastern New South Wales.
The Australian-first study which was published in the Environmental Science and Pollution Research journal analysed liver samples from nine deceased platypuses which were collected from community members over a two-and-a-half-year period.
Lead researcher and PhD candidate from Western Sydney University’s School of Science, Katherine Warwick said she was shocked of the levels of PFOS, which is a type of PFAS (per-and poly-fluoroalkyl substances), which were detected.
“We had eight platypuses from the wild and the ninth, which had spent the majority of its life in captivity,” said Ms Warwick said.
“The eight from the wild had concentrations of PFOS which ranged from 4 micrograms per kilogram to 1,200 micrograms per kilogram which really showed us that PFOS in aquatic environments is far more widespread that initially believed.”
“I thought we would find PFOS in one or two platypuses in low doses, so it was shocking to find it in all the wild platypuses. This is a first-of-its-kind study, so it is exciting for me as a PhD candidate, and to have this opportunity provided to me by Western Sydney University has set me up to lead this field and really promote platypus health in a broad scale sense.”
PFAS is a group of human-made chemicals used to resist heat, water, grease and stains, which are known as ‘forever chemicals’ as they don’t break down.
With platypuses being a top order predator that provide valuable environmental insights, Ms Warwick said that further research needs to be conducted into how they are consuming the PFOS chemical and its origins.
“This has showed us that even minute traces of PFOS in the water can accumulate to incredibly high levels within platypuses. This is a synthetic chemical which should not be in the water at all so any concentration is bad, but the maximum we found is astonishingly high,” she said.
“We know PFOS is hydrophobic and doesn’t like water so what it does it stick to the sediment. Platypuses forage for macroinvertebrates or water bugs on the bottom of the rivers so we believe that when they disturb the sediment and eat the macroinvertebrates that they incidentally ingest some contaminated sediment.”
“The highest concentration of PFOS that was detected was from a platypus found in the Hunter River in Maitland, which was the only one near a recorded PFOS hotspot, so it was not a surprise given the location. There is no publicly available data for the areas where the other platypuses were found so we are calling for additional data to be released if it does exist or if it doesn’t, for governing bodies to look further into this.”
Lead researcher and PhD candidate Katherine Warwick
Ms Warwick’s research was supervised by Associate Professor Ian Wright and Dr Michelle Ryan, both from the School of Science.
“Katherine and our colleague Dr Michelle Ryan have worked extremely hard with these sensitive and cryptic creatures, and I couldn’t be more delighted for Katherine and the work she has put into this research paper,” Associate Professor Wright said.
“We don’t have much water in Australia, and it is precious, so these findings are incredibly important and a sign that we need to manage our water supplies and make sure they are good for our wildlife but also for us.”
For more information, download and read, ‘First report of accumulation of perfluorooctane sulfonate (PFOS) in platypuses (Ornithorhynchus anatinus) in New South Wales, Australia’, here
First report of accumulation of perfluorooctane sulfonate (PFOS) in platypuses (Ornithorhynchus anatinus) in New South Wales, Australia
Abstract
The platypus (Ornithorhynchus anatinus) is a semi-aquatic monotreme that occupies a high trophic position in the freshwater ecosystems of eastern mainland Australia and Tasmania. Platypuses are continuously exposed to anthropogenic contaminants including perfluorooctane sulfonate (PFOS). This study examined PFOS concentrations in the livers of deceased platypuses (eight wild; one captive) that were opportunistically collected across NSW over a two- and a half-year period. There was a large variation in PFOS concentrations, ranging from < 1 µg/kg to 1200 µg/kg. This study presents the first report of PFOS contamination in platypuses, revealing their PFOS levels are broadly similar to those found in river otters (Lutra canadensis) and lower than those in American mink (Mustela vison), both which occupy similar ecological niches in freshwater systems. This study raises concerns about the impact of PFOS on platypus health.
_Scottsdale_4.jpg?timestamp=1724445994142)
Duck-billed platypus (Ornithorhynchus anatinus), Scottsdale, Tasmania. Photo: Charles J. Sharp - Own work, from Sharp Photography, sharpphotography.co.uk
Introduction
The platypus (Ornithorhynchus anatinus) is endemic to many rivers and streams in eastern Australia. However, there are growing concerns for their conservation with reports of declining abundance and distribution, including local extirpations (Woinarski et al. 2014). The species is recognised as having a declining population and is listed as “Near Threatened’ by the International Union for Conservation of Nature (IUCN) (Woinarski and Burbidge 2016). Platypuses are vulnerable to many impacts associated with human activity including hydrological changes, decline in water quality, increase in litter and discarded fishing line, illegal opera house nets (yabby traps) and water contamination (Grant and Temple-Smith 2003; Serena et al. 2016). Anthropogenic contaminants have the potential to enter waterways and disrupt aquatic ecosystems. Serena and Pettigrove (2005) found a negative correlation between heavy metal contaminants in sediment and platypus population abundance and a previous study by Munday et al. (2002) found persistent organic pollutants in platypus. One anthropogenic persistent waterway contaminant is perfluorooctane sulfonate (PFOS) (Butt et al. 2010) a homologue of PFAS and is defined by having an eight-carbon fluorocarbon chain with a sulfonate acid functional group. PFOS does not readily biodegrade and can persist in the environment for years (Nicole 2020) and has been reported to enter aquatic food chain and potentially bioaccumulate (Kannan et al. 2002; O’Rourke et al. 2022, 2024; Well et al. 2024). To date there have been no studies that examined PFOS concentrations in platypus tissue.
Previous studies of European otters (lutra lutra) (O’Rourke et al. 2022, 2024), Northern American river otters (Lutra canadensis) and mink (Mustela vison) (Kannan et al. 2002) all of which occupy a similar ecological niche, have examined PFOS concentration in liver samples, as such this study also chose to analyse liver samples for comparison. Health concerns for aquatic wildlife from exposure to high concentrations of PFOS include increased liver weight, decreased thyroid function, decreased immunity and neurological disorders (Keller et al. 2012). There are no current detected concentrations that are considered safe for platypus health, however draft guidelines by the Australian government suggest that exposure directly from their diet should not exceed 3.1 µg/kg of wet weight (combined PFOS and PFHxS concentrations) (DCCEEW 2022).
Theoretically, platypuses may be exposed to high levels of PFOS. PFOS can bioaccumulate, and the food source of platypuses, aquatic invertebrates, have been reported to contain substantial PFOS levels (Ahrens and Bundschuh 2014). Platypuses consume up to 21% of their body mass daily, and up to 36% of body mass in lactating females, of aquatic invertebrates (Thomas et al. 2020). Additionally, it is known that aquatic environments have the greatest risk of PFOS contamination, due to surface run off and effluent discharge (Australia and New Zealand guidelines for fresh and marine water quality n.d.). Many studies have documented the accumulation of PFOS in vertebrate species, however these studies focused primarily on livestock, or marine mammals and birds (Ahrens and Bundschuh 2014; Foord et al. 2024). For example, a recent study in Australia examined little penguin (Eudyptula minor) scats, eggs and plasma and found 14 homologue of PFAS with PFOS being the most commonly detected (Well et al. 2024). This study found a positive correlation between PFOS concentration and urbanised environments (Well et al. 2024).
American mink and river otters are two of the only freshwater mammal species that have been assessed for PFOS levels, and both are regarded as sentinel species for detecting environmental contaminants in aquatic systems (Kannan et al. 2002). They also occupy a similar ecological niche to the platypus: all three live in freshwater environments and are predators at the top of the aquatic ecosystem. Toxicology studies in mink and otters have recorded very high liver PFOS concentrations (20–5140 µg/kg and 25–994 µg/kg, respectively) (Kannan et al. 2002), with investigations in mink reporting some of the highest PFOS concentrations detected in freshwater sentinel species (Ahrens and Bundschuh 2014). The biomagnification of PFOS by mink was confirmed by a controlled captive feeding study (Ahrens and Bundschuh 2014). The aim of this study was to determine if PFOS were present in the livers of platypuses and if so, at what concentration. If platypuses are consuming PFOS directly from their food source, then it would be expected that platypuses with a lower TVI (higher body fat percentage) would have a higher concentration of PFOS owing to a larger dietary intake compared with platypuses with a higher TVI (lower body fat percentage) (Macgregor et al. 2016). This was achieved by opportunistically collecting and testing samples from incidentally deceased platypuses from New South Wales (NSW).
Materials and methods
Platypus carcasses (n = 9) were collected between 2020 and 2023 from nine locations across NSW (Fig. 1). Of these, eight were from the wild and one from captivity. Liver samples were collected at the same time as necropsy was performed, which for four platypus carcasses (A, D, F and I) were performed within 24 h of death. Five of the platypuses (B, C, E, G and H) were stored in a -20 °C freezer for up to 10 months until a necropsy was performed. For each carcass, a gross necropsy and sample collection was performed at Taronga Zoo, Sydney, by a wildlife veterinarian. The following variables were recorded: Tail volume index (TVI), degree of decomposition, length (tip of bill to end of tail), weight, sex, and age (based on spur morphology) (Grant and Carrick 1978; Williams et al. 2012) (Table 1). A platypus stores approximately 50% of its total fat volume in its tail and as such is TVI is the current industry standard for assessing body condition (Macgregor et al. 2016). A TVI of 1 indicates high fat deposits in the tail and a TVI of 5 indicates emaciation. TVI is assessed by squeezing the edges of the tail together, the closer the edges are to touching each other, the lower the fat deposits in the tail.

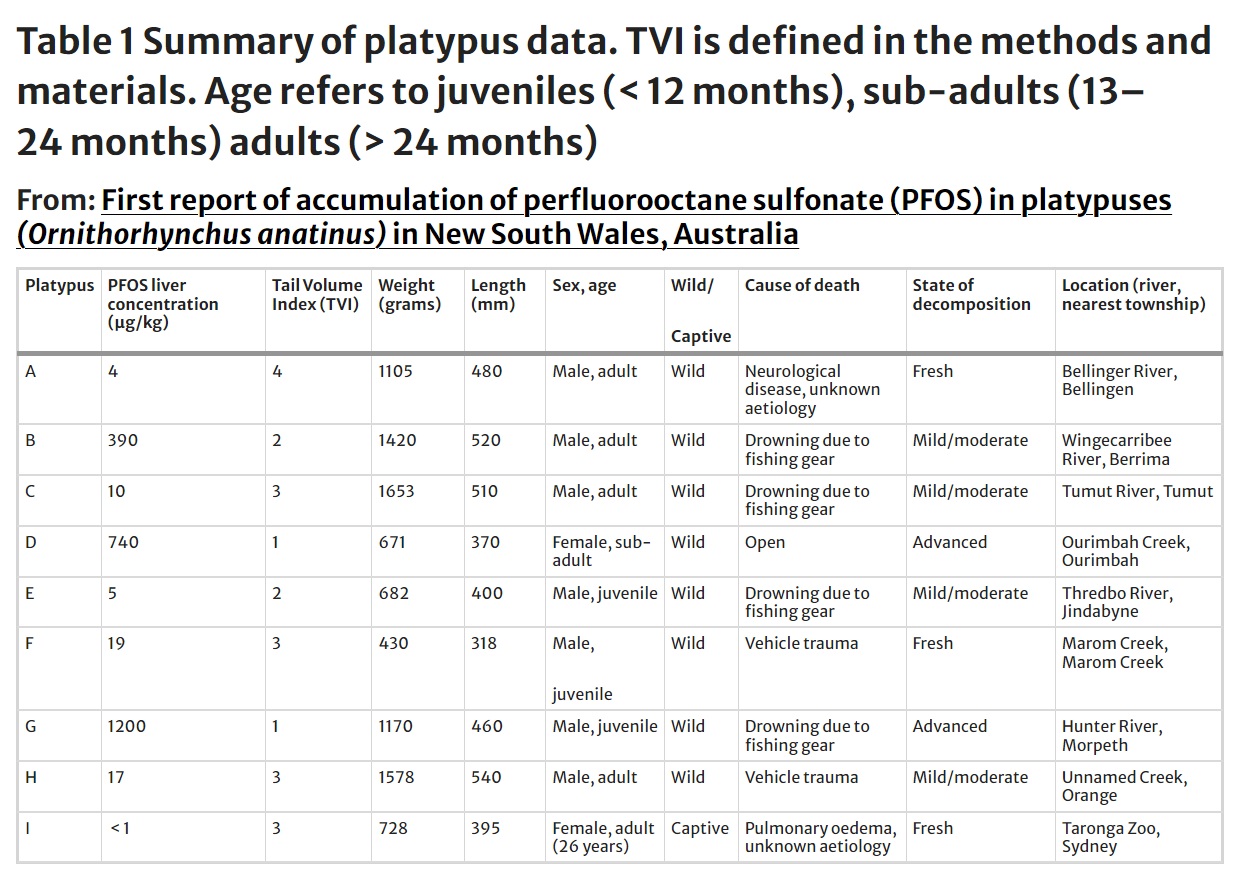

Table 1 Summary of platypus data. TVI is defined in the methods and materials. Age refers to juveniles (< 12 months), sub-adults (13–24 months) adults (> 24 months)
Liver samples were used to test for PFOS due to previously published studies of European otters (Lutra lutra) and Northern American mink (Mustela vison) and river otters (Lutra canadensis) that also used liver (Kannan et al. 2002). Given that these species occupy a similar ecological niche, these results are comparable. The livers were wrapped in aluminium foil and stored at -20 °C prior to analysis. The samples were prepared for analysis at the Western Sydney University Hawkesbury Laboratory. Livers were freeze dried at -40 °C over two 18-h cycles using an Edwards Freeze Dryer Modulyo with a Pirani 501 vacuum gauge control. Freeze dried samples were then analysed at EnviroLab, Chatswood, Sydney, (National Association of Testing Authorities accredited) for concentrations of PFOS using solid phase extraction and liquid chromatography tandem mass spectrometry. Due to the freeze-drying process and minimum sample weight required for laboratory analysis (1 g), only a single replicate of liver could be obtained from each platypus. Duplicate samples and matrix spike recoveries were analysed at a frequency to meet or exceed NEPM requirements. The duplicate sample, relative percentage difference (RPD) and matrix spike recoveries for the batch were within the laboratory acceptance criteria.
Results and discussion
This study detected concentration of PFOS in eight of the nine individual platypus livers, ranging from 4–1200 µg/kg. The only liver that did not result in detectable PFOS concentrations came from the only captive platypus in the study (Table 1). There are no guidelines on what constitutes safe concentrations of PFOS in wildlife.
In the case with the highest recorded concentration of PFOS (1200 µg/kg, platypus G) the location of origin had no reporting of water testing for PFOS nor is there any publicly available documentation of PFOS contamination based on the NSW Government PFAS Response website (DPI&RD 2024) and NSW EPA (NSW Epa 2024). However, in the upstream catchment (up to 110 km2) of where the platypus was found, there is a wastewater treatment plant, and a regional airport. Additionally, a fire station was in the immediate vicinity of both this case and the case with the third highest concentration of PFOS (390 µg/kg, platypus B). Whilst this study did not investigate the source of PFOS contamination, research has shown increased concentrations of PFOS associated with airports, and firefighting locations including training facilities (Australian and New Zealand Guidelines fresh and marine quality n.d.; United Nations Environment Programme (2006). The only platypus in this study that had undetectable levels of PFOS was the captive platypus (I). This suggests that the provision of filtered water may reduce the likelihood of PFOS accumulation.
The results of this study show a negative relationship between liver PFOS concentration and body condition, as assessed by the Tail Volume Index (TVI) (Fig. 2). This study found that platypuses with the lowest TVI, and thus best body condition (D and G), had the highest concentrations of PFOS (Table 1). This observed negative relationship could be a result of platypuses in better body condition consuming a higher daily biomass, and therefore being exposed to a higher concentration of PFOS through their food source. This study found no relationship between PFOS concentration and age, sex, total body weight, and/or total body length.
A limitation of this study is that it was not possible to replicate or control external factors. Deceased platypuses were collected opportunistically from across NSW and therefore factors including location, water quality, age, sex, and degree of decomposition could not be controlled. Due to the nature of this sampling method, it was also not possible to have a control or reference sample, although given the widespread nature of PFOS it is unlikely that there is a wild platypus population that is completely unaffected by the synthetic chemical.
The results of this study show that platypuses are accumulating PFOS in very high concentrations, at comparable levels to those previously recorded in river otters, but less than what was previously recorded in mink (Kannan et al. 2002). Given the small sample size of this study, only observed concentrations of PFOS were reported on, further research should include statistical analysis to determine if a correlation between TVI and PFOS concentration could be determined and if so, what this means. Future studies should explore health impacts associated with exposure to PFOS and the direct and indirect bioaccumulation pathways.
Ethical approval
This project operated under Western Sydney University Biosecurity and Radiation approval (B14275), New South Wales National Parks and Wildlife Service Scientific permit (SL102542), and Taronga Conservation Society opportunistic sampling request agreement (R22D343).
Warwick, K.G., Wright, I.A., Whinfield, J. et al. First report of accumulation of perfluorooctane sulfonate (PFOS) in platypuses (Ornithorhynchus anatinus) in New South Wales, Australia. Environ Sci Pollut Res (2024). https://doi.org/10.1007/s11356-024-34704-w
Urgent investigation needed into Sydney’s drinking water: PFAS Detected
August 20, 2024
Greens MP and water spokesperson Cate Faehrmann says the NSW Government must urgently carry out a full independent investigation into Sydney’s drinking water after more revelations that cancer-linked forever chemicals have been detected in Sydney’s drinking water catchment.
New studies have also found alarming levels of PFAS in the bodies of platypuses in NSW, in areas where there is no known PFAS hotspot nearby.
In December 2023, the World Health Organisation concluded that forever chemicals are carcinogenic. As a result, the United States introduced maximum levels of four parts per trillion (4ppt), but noted that there is no level of exposure without a risk of adverse health effects.
”The Government needs to come out today and assure Sydneysiders that their drinking water is safe, and if it isn’t, what steps it will take to urgently restore a safe water supply? These latest revelations also show that Sydney Water and the EPA aren’t being straight with the public and therefore a full independent investigation is needed,” said Cate Faehrmann.
“The levels of PFAs permitted under Australia’s drinking water guidelines are at 560ppt - 140 times the maximum level allowed in the US. It’s reckless in the extreme for the government to continue to allow forever chemicals deemed carcinogenic by the World Health Organisation to be present in our drinking water.
“I wrote to the Health and Water Ministers back in June seeking urgent independent testing make the results public - they rejected that request. However, in the meantime, Sydney Water has started carrying out monthly monitoring of ‘potentially impacted areas’, all the while failing to adequately inform then public.
“Sydney Water claims that all the samples it tested were below the Australian drinking water guidelines - but that doesn’t mean the water is safe to drink. There are no safe levels of exposure to PFAS. The World Health Organisation has tied forever chemicals to cancer, interference with hormones and the immune system, and developmental effects in children.
“On its website, Sydney Water claims that the Australian guidelines for safe levels of PFAS in drinking water are “underpinned by available scientific knowledge”. That’s just not true.
“The Federal Government must urgently bring forward its review of Australia’s drinking water guidelines, which have not been updated since 2022.
“The Environment Minister must explain how the Environment Protection Authority has known about widespread PFAS contamination in NSW for years yet failed to do anything about it. This is another example of its complete failure to do its job - to protect the environment and the people of NSW,” Cate Faehrmann said.

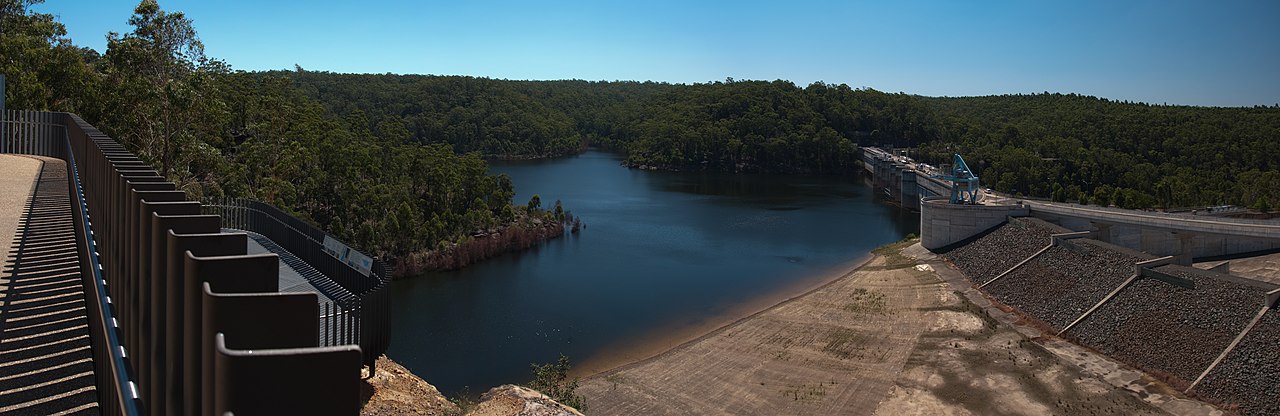

Warragamba Dam. Photo: Jonathan Pope
